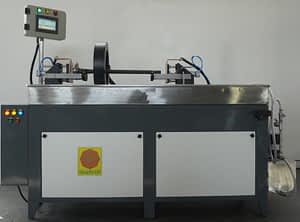

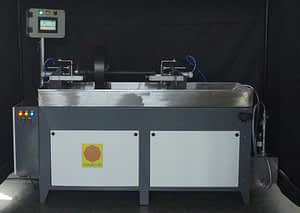

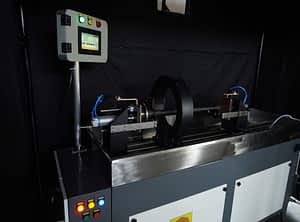

MPI Machine for aerospace parts

These devices are designed for identifying surface and subsurface imperfections in aerospace components. They adhere to the ASTM E1444 and E709 standards.

They generate AC & FWDC current.


  • Utilizes PLC-Based Control with an Automatic Cycle for efficient testing.
  • Features a 7-inch Touch Screen for convenient control and display.
  • Allows operator-controlled automatic double shot.
  • Offers a 50-program memory to store settings for various parts.
  • Displays errors on the touch screen for easy diagnostics.
  • Provides independent current control for Circular and longitudinal magnetization.
  • Implements digital, stepless current control.
  • Equipped with Pneumatic clamping on both sides.
  • Includes a Stainless Steel liquid storage tank.
  • Comes with a Stainless Steel collection tray.
  • Features a Reverse agitation bath system.
  • Incorporates a continuously movable tailstock with a cam lock.
  • Provides steady rollers for job placement.
  • Integrates decaying-AC demagnetization with automatic changeover to AC.
  • Switches AC to FWDC using solid-state circuitry.
  • Utilizes feedback loop-based current control with a current failure indicator.
  • Employs a standard make PLC & HMI that is easily serviceable.
  • Includes a Range Selection switch for enhanced pulse width in low amperage settings.
  • Incorporates an AC Drive for Pump Control.


Headshot Current Capacity Models starting from 3000A going up to 6000A
Maximum Part Length Accommodation Starting from 600mm going up to 1500mm
Maximum Part Diameter Starting from 150mm going up to 300mm
Maximum Part Weight 450Kg
Storage Bath Capacity 25 L
Shot Time Adjustable from 0.5 sec 2.0 sec
Power Supply 2 Phase 2 Wire 415V AC/220V AC
Frequency 50Hz or 60Hz
Pneumatic Pressure Required 4-6 Kg/cm2
Coil Diameters 300mm, 400mm, 500mm
Control Voltage 24V DC
Touch Screen Display Size 7” Diagonal

Optional features:

  • Utilizes Separate Digital Ammeters
  • Features a Mag-shot-activating front push bar with 1-touch control to enable/disable this function.
  • Implements Reversing DC Demagnetization.
  • Incorporates a Database System with an advanced touch screen operating interface and barcode scanner, eliminating manual input time.
  • Employs user-controlled security systems with password protection, supervisor locks, and customizable operator access profiles.
  • Daily reminder alarms verify UV light, visible light, and particle bath concentration for process control requirements.
  • Displays errors on the touch screen for easy diagnostics.
  • Employs SCR-based digital current control for enhanced accuracy and precision.
  • Utilizes a feedback loop to ensure repeatability.
  • Incorporates a reverse agitation system to keep the powder consistently dissolved in the carrier fluid.
  • Utilizes pneumatic clamping to ensure spark-free operations.
  • Features a 7-inch Touch Screen for operator comfort.
  • Complies with aerospace standards for magnetic particle testing.
  • Includes low voltage output for operator safety.
  • Allows operator control of Poka yoke for the demagnetization cycle.
  • Aerospace parts
  • Oil field equipment parts
  • Marine Industry parts

Product models

Horizontal Clamping Models

Model Head Shot Capacity Coil Shot Capacity Coil Inside Diameter Maximum Part Length Maximum Part Diameter
MK-30-C-60-AF 3000A AC & FWDC 10.0 KAT AC & FWDC 300mm 600mm 150mm
MK-30-C-120-AF 3000A AC & FWDC 10.0 KAT AC & FWDC 300mm 1200mm 150mm
MK-40-C-100-AF 4000A AC & FWDC 10.0 KAT AC & FWDC 400mm 1000mm 200mm
MK-40-C-150-AF 4000A AC & FWDC 10.0 KAT AC & FWDC 400mm 1500mm 200mm
MK-50-C-100-AF 5000A AC & FWDC 10.0 KAT AC & FWDC 400mm 1000mm 250mm
MK-50-C-150-AF 5000A AC & FWDC 10.0 KAT AC & FWDC 400mm 1500mm 250mm
MK-60-C-100-AF 6000A AC & FWDC 10.0 KAT AC & FWDC 500mm 1000mm 300mm
MK-60-C-150-AF 6000A AC & FWDC 10.0 KAT AC & FWDC 500mm 1500mm 300mm
