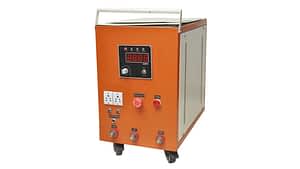

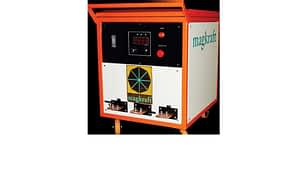

Mobile Current Generators
- Mobile Power Packs: Electromagnetic Current Generators for AC or HWDC Magnetization.
- Our mobile current generators are designed for the magnetic particle inspection method, ideal for testing large and very heavy parts that cannot be accommodated on a stationary-type machine. These units come equipped with AC and Half Wave DC output capabilities.
- With a magnetization time of up to 3.0 seconds, these generators enable the complete development of indications. They are available in various amperages to suit different testing requirements.
- Each unit is supplied with a pair of direct contact prods. One of the prods is equipped with a switch to initiate the magnetization cycle, providing ease of use during the inspection process.
Features
- Digital, stepless current control.
- Large digital readout ampere meters with retention.
- Heavy-duty transformer. No need to wait between two shots.
- Sturdy wheels for movement on the shop floor.
- AC/HWDC changeover.
- Integrated decaying-AC demagnetization with automatic control.
- Feedback loop-based current control with current failure indicator.
- Minimal electronic components. Easily serviceable.
Specifications
| Headshot Current Capacity | Models staring from 2000A going up to 6000A |
| Shot Time | Maximum 3.0 Seconds |
| Power Supply | 2 Phase 2 Wire 415V AC/220V AC |
| Frequency | 50Hz or 60Hz |
- Benefits
- Utilizes SCR-based digital current control for accuracy and precision.
- Incorporates a feedback loop to ensure repeatability.
- Features a large, easy-to-read digital display for convenient reading from a distance.
- AC to HWDC changeover uses solid-state circuitry, eliminating changeover sound.
- Provides low voltage output for operator safety.
- applications
- Large Castings
- Steel Industry
- On Site Inspections
- Turbines
- Marine
- Aerospace
Product models
Horizontal Clamping Models
| Model | Current Capacity | Cables Included |
| MK-20-MP | 2000A AC & HWDC | 120mm2—3m X2 |
| MK-30-MP | 3000A AC & HWDC | 120mm2—5m X2 |
| MK-40-MP | 4000A AC & HWDC | 120mm2—5m X2 |
| MK-50-MP | 5000A AC & HWDC | 120mm2—5m X4 |
| MK-60-MP | 6000A AC & HWDC | 120mm2—5m X4 |
