Demagnetizer Machine

Demagnetizer Machines play a pivotal role in diverse industries by efficiently eliminating residual magnetism, thereby ensuring the quality and functionality of the final products. With the ability to accommodate various materials and magnetism levels, coupled with an energy-efficient and user-friendly design, our Demagnetizer Machines serve as a crucial tool in upholding excellence in production.

Chute Type Demagnetizer

This demagnetizer features a coil opening of 200mm x 200mm. A stainless steel chute runs through the coil, allowing components to slide down with the force of gravity. It is well-suited for demagnetizing small components.

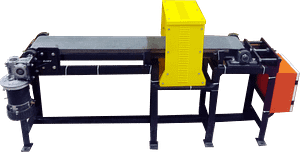

Conveyor Type Demagnetizer

This demagnetizer employs a belt-type conveyor and is offered in three distinct sizes of coil openings: 200x200mm, 300x300mm, and 500x500mm. The conveyor length varies based on the coil opening size and can be customized as needed. Additionally, features such as Auto Start, Auto Stop, and a job counter can be integrated upon request.

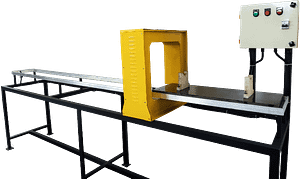

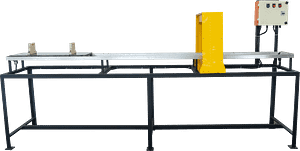

Trolley Type Demagnetizer

This demagnetizer utilizes a manual trolley to transport the component from one end to the other, supported on robust wheels. It is available in three different coil opening sizes: 200x200mm, 300x300mm, and 500x500mm. This demagnetizer is widely used for its versatility and practicality.

Motorized Trolley Demagnetizer

This demagnetizer employs a motorized trolley to transport the component from one end to the other. The trolley is connected to a chain driven by a geared motor. It is offered in three different sizes of coil openings: 200x200mm, 300x300mm, and 500x500mm. Additionally, optional features such as a job counter and auto return can be seamlessly integrated upon request.

Stationary Type Demagnetizer

This demagnetizer employs electronic circuitry to generate a gradually decreasing AC current in the demagnetizer coil. The component is positioned inside the coil, and the slowly diminishing magnetic field effectively demagnetizes the component. It is available in various coil sizes: 200mm x 200mm, 300mm x 300mm, 400mm x 400mm, and 500mm x 500mm.

Reversing DC Demagnetizer

This reversing DC demagnetizer employs the headshot method to pass slowly reducing and reversing DC current through the component. This process generates a gradually diminishing circular magnetic field within the component, effectively demagnetizing it completely. The use of DC ensures thorough demagnetization, not only from the surface but also from the core of the part.
